The Center Mount versionfeatures an additional bridge piece that runs between the pivots andallows the Racer Medium to mount to frames with a single brake mountinghole above the tire. The option is given for a shorter recessedbolt to work with modern frames, or a longer non-recessedbolt that works with older frames. In this setup the Racer Medium is a medium(or "standard") reach brake with a range of 47 to 57mm.

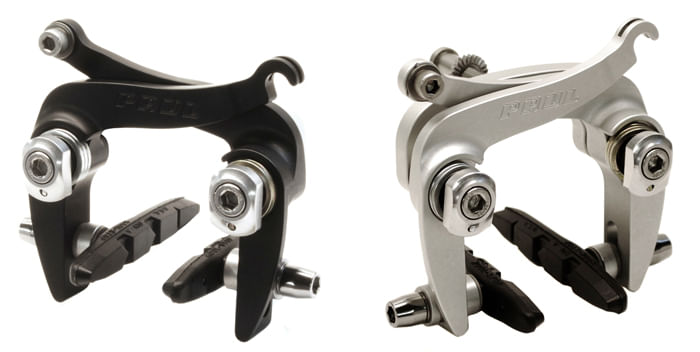

The Racer Medium come with all necessary hardware: mountingbolts, straddle wires, and cable carriers. Black or silver anodizationis available, along with a high polish finish.
Between the arms there is enough clearance tofit a 45mm fender and a 32mm tire. We think this is aperfect combination for an all-around-do-everything road bike if thereever was one. As a bonus, the brake will not pinch the side of thefender like dual pivot brakes do.
Material: | 6061 Aluminum |
Weight (w/o pads): | Center Mount 154g/wheel |
Finish: | Anodized or High Polish |
Anodized Color: | Black |
Cable Pull: | Short Pull |
Reach: (measured center mount bolt to pad) | 47mm - 57mm |
Instructions: | racerm.pdf |
